UltraTech Spill Pallets #1010, #1011, #1000, #1001
Ultratech Spill Pallets Singapore
Product Highlights
- High load capacity: 6,000 lbs. for Ultra-Spill Pallet P4, 3,000 lbs. for Ultra-Spill Pallet P2.
- Bright, safety yellow sidewalls are translucent, offering convenient visual leak detection.
- 100% polyethylene (LLDPE) construction – compatible with a broad range of chemicals, including acids and corrosives.

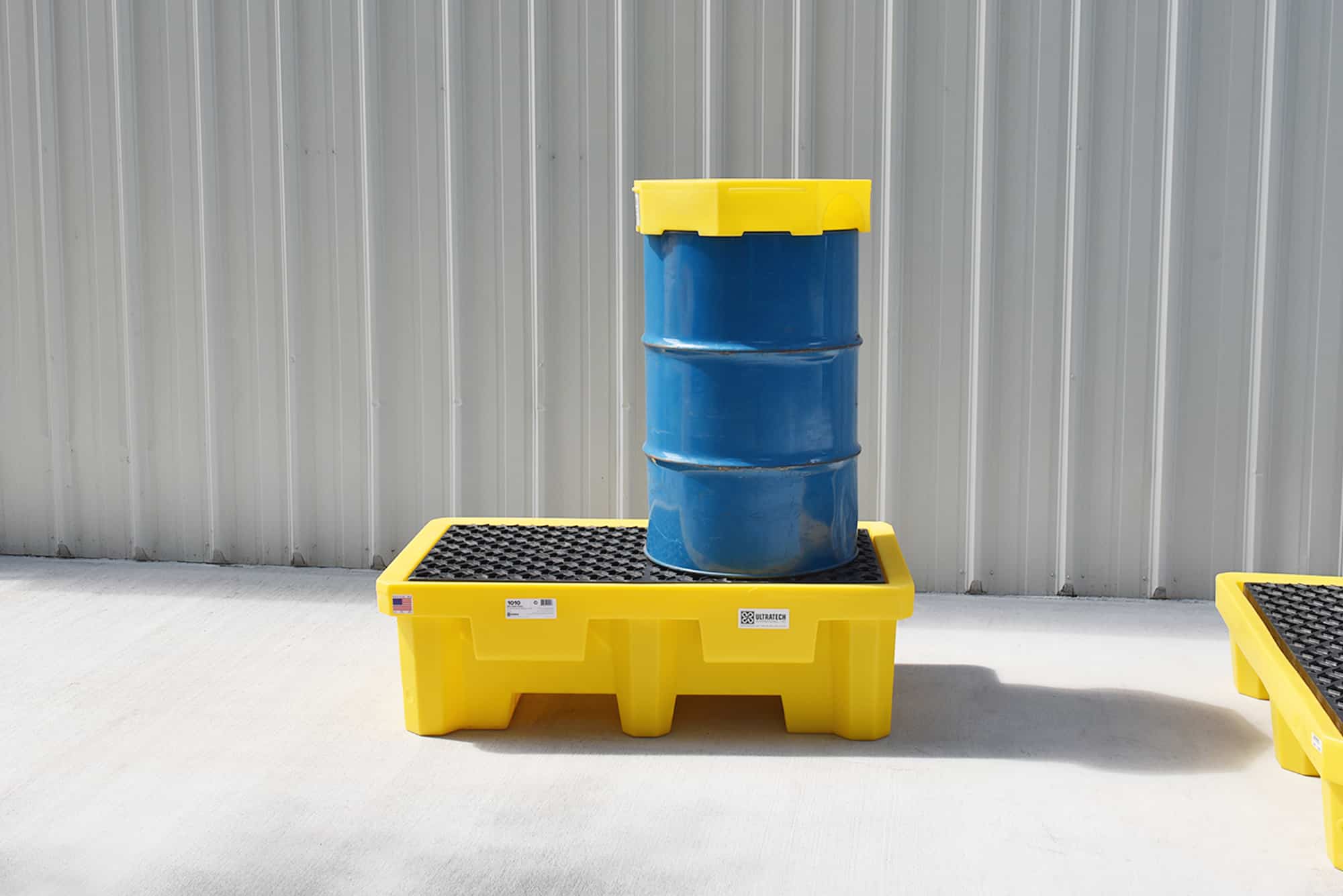

Ultra-Spill Pallets – P2 (Two-Drum) Model
| Part # | Model | Dimensions in. (mm) | Grating Surface in. (mm) | Weight Capacity UDL lbs. (kg) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|---|---|---|
| 1010 | P2 Pallet Model Without Drain | 53 x 29 x 16.5 (1346.2 x 736.6 x 419.1) | 48 x 24 (1219.2 x 609.6) | 3000 (1360.8) | 66 (249.8) | 63 (28.6) |
| 1011 | P2 Pallet Model With Drain | 53 x 29 x 16.5 (1346.2 x 736.6 x 419.1) | 48 x 24 (1219.2 x 609.6) | 3000 (1360.8) | 66 (249.8) | 63 (28.6) |

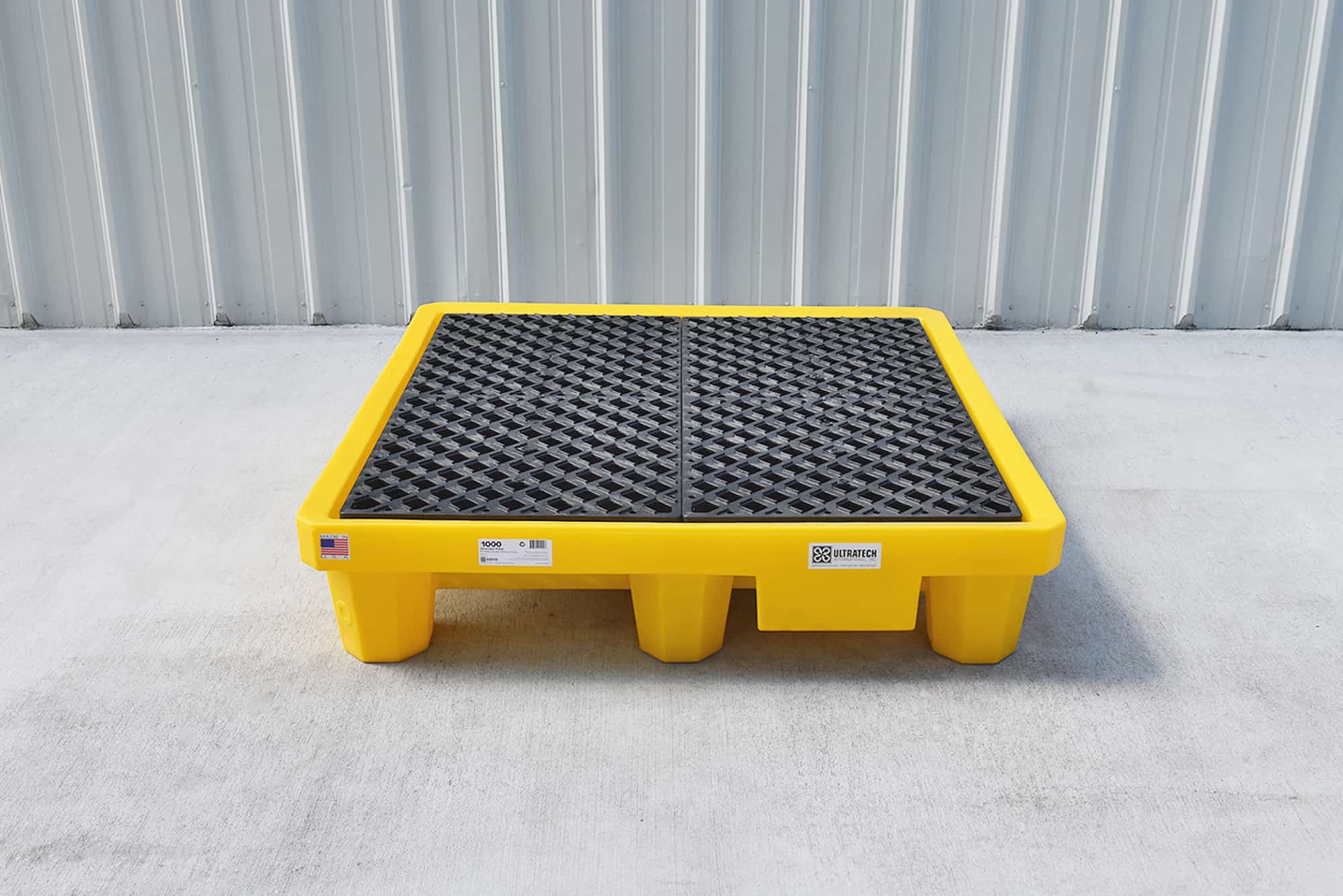

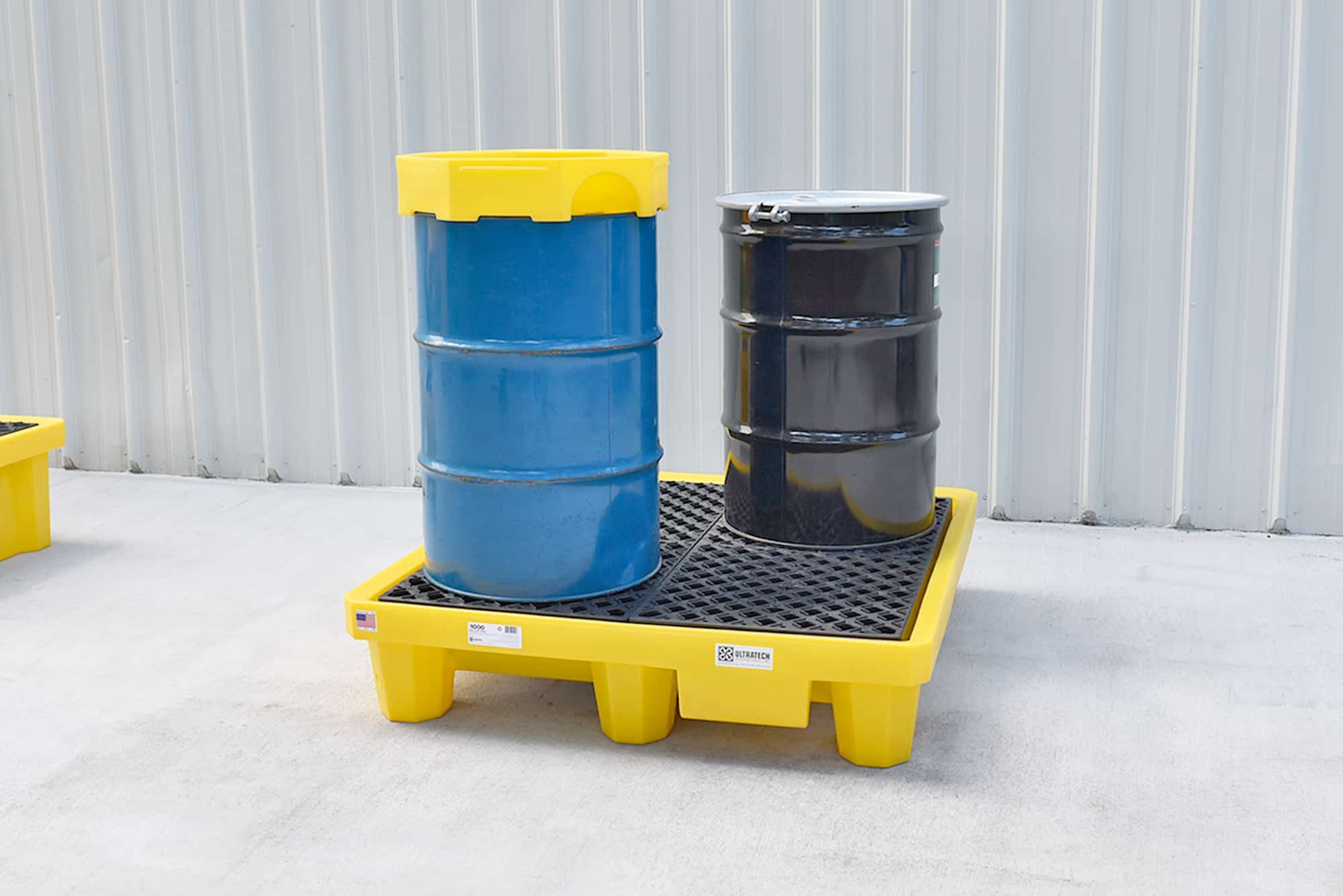

Ultra-Spill Pallets – P4 (Four-Drum) Model
| Part # | Model | Dimensions in. (mm) | Grating Surface in. (mm) | Weight Capacity UDL lbs. (kg) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|---|---|---|
| 1000 | P4 Pallet Model Without Drain | 53 x 53 x 11.8 (1346.2 x 1346.2 x 298.5) | 48 x 48 (1219.2 x 1219.2) | 6000 (2721.6) | 66 (249.8) | 90 (40.8) |
| 1001 | P4 Pallet Model With Drain | 53 x 53 x 11.8 (1346.2 x 1346.2 x 298.5) | 48 x 48 (1219.2 x 1219.2) | 6000 (2721.6) | 66 (249.8) | 90 (40.8) |
Options
| Part # | Model | Product Image | Dimensions in. (mm) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|---|---|
| 0678 | Ramp for P1 Plus, and P4 Pallets (Excluding P4 Plus) |  |
68.5 x 28.5 x 12 (1739.9 x 723.9 x 304.8) | 318 (1203.8) | 73 (33.1) |
